One ordinary morning at Caltech Someone looked at an ultrasound and thought, “What if instead of using ultrasound just to see inside the body, we used it to build something?” It was the origin of one of the most promising medical technologies of recent years. La 3D ultrasonic printing It's exactly what it sounds like: a way to create solid structures inside the body without scalpels, stitches, or scars. An idea that could rewrite surgical and therapeutic protocols as we know them.
I am fascinated by how this technology could radically change our relationship with surgery. Imagine going into the hospital in the morning for a complex operation and leaving the same evening, without even a cut on your skin. Researchers led by Professor Wei Gao They have named this technique revolutionary “Deep Tissue In Vivo Sound Printing” (DISP), and the results are already impressive.

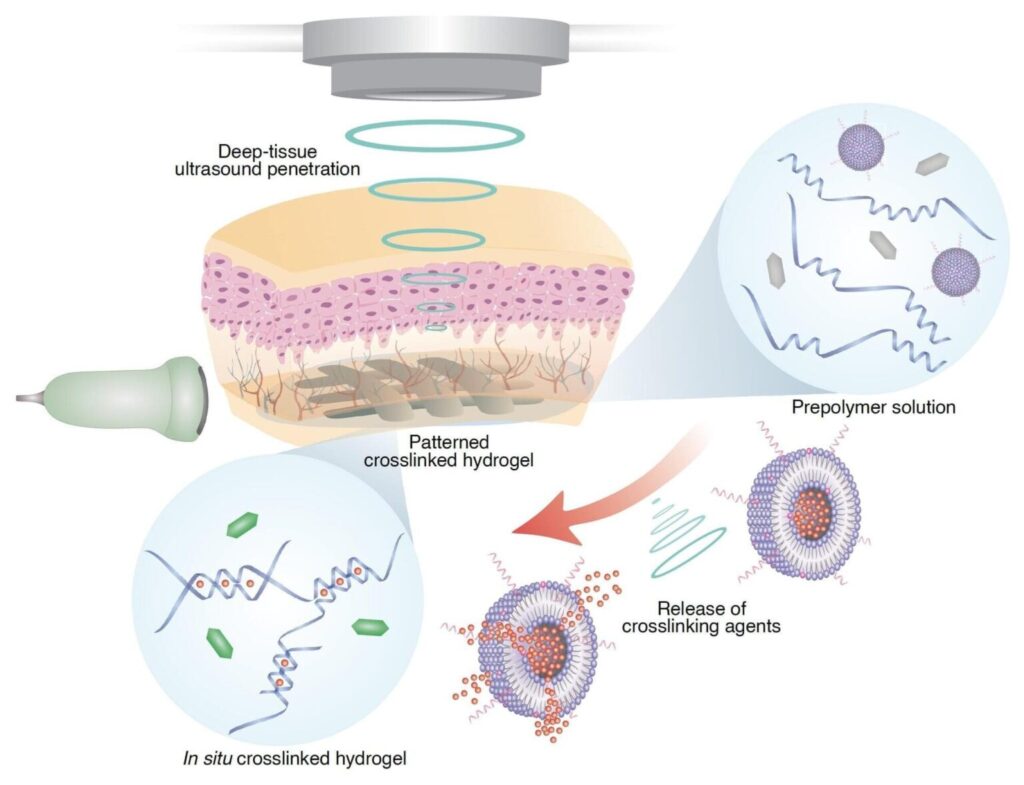

The system uses an ingenious principle: a special “ink” (bioink) is injected into the body and remains liquid until precisely focused ultrasound “activates” it exactly where it is needed. It is like having a microscopic architect who builds three-dimensional structures inside the organs, following detailed and perfectly controlled plans.
How the Magic of Ultrasonic 3D Printing Works
The key to this technology is temperature-sensitive liposomes. These tiny spherical containers (think of microscopic bubbles) carry within them the agents needed to solidify the polymer. Until they are stimulated, everything remains in liquid form: perfect for injecting even the tightest spaces in the body.
When ultrasound hits the target area, it causes a local increase in temperature of just 5 degrees Celsius. A minimal change, but enough to make the liposomes “burst” and release the binding agents that transform the liquid into a solid gel. It is an incredibly precise process: we can create complex shapes such as stars or drops (you can see them in the cover image of the article) exactly where we need them, even in depth, where previous techniques such as infrared light could not reach.
“Ultrasound can penetrate deep into tissue. Our new technique can reach deep tissue and print a variety of materials for numerous applications, while maintaining excellent biocompatibility,” he explains. Wei Gao.
The system also includes a clever way to check that everything is working properly. The researchers use microscopic “gas vesicles” that change their imaging contrast as the solidification reaction occurs, allowing doctors to see in real time if and where the gel is forming.
Apps that save lives
When I think about the possibilities of this technology, I think of scenarios that seemed unthinkable just a few years ago. The tests conducted so far suggest extraordinary applications that could revolutionize entire fields of medicine.
Let's take cancer treatment. In mice, the researchers used DISP to create hydrogel capsules containing doxorubicin (a chemotherapy drug) directly to bladder tumors.
The results? Significantly higher tumor cell mortality compared to traditional drug injection, thanks to the gradual and targeted release that allows the medicine to act exactly where it is needed, for days.
But that's not all. Imagine being able to repair damaged tissue, seal internal wounds, or even create small functional devices inside the body. Tests on rabbits have shown that it is possible to print pieces of artificial tissue up to 4 centimeters deep under the skin, opening up new possibilities for regenerative medicine.
The Future: Artificial Intelligence and Beating Hearts
What’s next? Researchers are already looking ahead. Wei Gao envisions an AI-enhanced system that can print with pinpoint precision inside moving organs, like a beating heart. Crazy, right?
And let's not forget biosensors. By adding conductive materials such as carbon nanotubes or silver nanowires to the bioink, it is possible to create sensors implantable to monitor temperature or electrical signals from the heart or muscles. A permanent, invisible and perfectly biocompatible electrocardiogram.
Let's talk about safety? No toxicity was detected in the tests of the hydrogel, and the residual liquid bioink is naturally eliminated from the body within seven days. It's as if nature worked with technology in perfect balance.
Ultrasonic 3D Printing, the Way Forward
Of course, as with any breakthrough technology, there is still a long way to go. Researchers are currently planning tests on larger animals, a necessary step before moving on to human trials. But the direction is clear, and the promise is exciting.
This technology will not completely eliminate the need for traditional surgical interventions, but it could drastically reduce their number and invasiveness. I think of fragile patients who cannot face an operation, or areas of the body that are difficult to access with a scalpel. Ultrasound 3D printing could offer alternatives where they did not exist before.
The economic potential also comes to mind: fewer days of hospitalization, fewer post-operative complications, fewer pain medications. The benefits would extend far beyond the operating room, to the entire health system.
The work of the Caltech team, published in the prestigious magazine Science, could mark the beginning of a new era for medicine. And to think that it all started by looking at a common ultrasound differently.
Beyond Ultrasound: The Future of 3D Printing in Medicine
As the DISP technique gains traction, other innovations in medical 3D printing are emerging in parallel. For example, researchers at Penn State University have developed a system called HITS-Bio that significantly accelerates the human tissue bioprinting, working ten times faster than traditional methods.
The basic idea is similar: to create functional biological structures without the limitations of traditional surgery. But the applications extend to the creation of entire organs. Professor Ibrahim Ozbolat, who leads the study, uses “cellular clusters” called spheroids to speed up the process—the equivalent of using prefabricated blocks instead of individual bricks.
And that’s not the only innovative approach. Research into 3D printing in medicine has already produced concrete results in fields such as dentistry, orthopedics, and cardiac surgery. The ability to create precise anatomical models to plan complex interventions is already changing the way surgeons approach difficult cases.
The road to a future where the human body becomes a “living printer” is still long, but every day we are getting closer. And I can’t wait to tell you about the next developments of this incredible scientific adventure.
